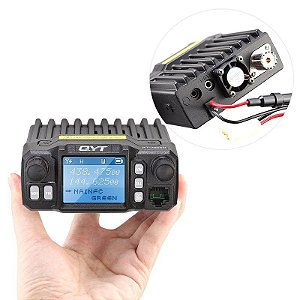

MINI RADIO DUAL BAND 25W KT 8900D
RECEBE E TRANSMITE AUTOMÁTICO VHF 136/174Mhz UHF 400-480Mhz (RX/TX )
Recebe Quad Band Automático no Visor
DESCRIÇÃO
Características:
Projetado para ajuste perfeito.
Alta qualidade 100% brandnew.
Faixa de freqüência: 136-174MHz (RX & TX), 400-480MHz (RX & TX).
Potência de saída: VHF 25 Watt, UHF 20 Watt.
5Tone / 2Tone / DTMF / CTCSS / DCS.
Banda dupla, Dual-Standby.
Display Duplo.
Ventilador do radiador (Resolver o problema do aquecimento e quente).
Potência de saída de 25W (VHF).
Altifalante externo / PTT
Mini tamanho portátil.
Programa PC.
Remote Stun, Remote Activate, Remote Kill.
Código PTT-ID.
Comunicação de longa distância.
Rádio FM.
Função Alarme.
Monitor.
200 Canais para armazenar.
Especificações:
Faixa de freqüência: (VHF) 136-174MHz, (UHF) 400-480MHz.
Capacidade do canal: 200.
Espaçamento do canal: 25KHz / 20KHz / 12.5KHz.
Estabilidade da freqüência: 2.5ppm.
Temperatura de operação: -20 a +60 graus Celsius.
Tensão de operação: 13.8V DC ± 15%.
Dimensões (H x L x P): 98mm (L) x 43mm (H) x 126mm (L).
Peso (sem acessórios): 448g.
Cor preta.
Receptor
Banda larga
Banda estreita
Sensibilidade
= <0,25μV
= <0,35 μV
Escolha do canal
> = 70dB
> = 60dB
Intermodulação
> = 65dB
> = 60dB
Rejeição Espúria
> = 70dB
> = 70dB
Resposta de áudio
+ 1 ~ -3dB (0,3 ~ 3KHz)
+ 1 ~ -3dB (0,3 ~ 2,55KHz)
A relação sinal-ruído
> = 45dB
> = 40dB
Distorção de áudio
= <5%
Potência de saída de áudio
> = 2W @ 10%
Transmissor
Banda larga
Banda estreita
Potência de saída
25W / 20W (VHF / UHF)
Modo de modulação
16KΦ F3E
11KΦ F3E
Potência do canal
> = 70dB
> = 60B
A relação sinal-ruído
> = 40dB
> = 36dB
Harmônicos parasitas
> = 60dB
> = 60dB
Resposta de áudio
+ 1 ~ -3dB (0,3 ~ 3KHz)
+ 1 ~ -3dB (0,3 ~ 2,55KHz)
Distorção de áudio
= <5%
O pacote inclui como abaixo
1 x QYT KT-8900D Transceiver móvel preto (com caixa de varejo).
1 x Manual do usuário em inglês.
1 x cabo de alimentação do carro.
1 x Suporte de Montagem.
1 x Microfone.
1 x Parafuso.
1 x fusível
